Improved image quality and unified SUV results
Leveraging the full potential of SPECT
Using software and hardware techniques, Hermia's SPECT reconstruction is optimized for speed and a wide range of procedures, radio-pharmaceuticals and collimators, making it possible to improve image quality while reducing dose and acquisition time for virtually any camera manufacturer.
See our white paper on Advanced Bone SPECT Reconstruction in Hermia
-
SUV for all radionuclides and all SPECT cameras
Ga-68; Ho-166; l-123; l-131; ln-111; Kr-81m; Lu-177; Tc-99m; TI-201; Y-90
-
Fastest reconstruction on the market
Thanks to the GPU computing capabilties, Hermia is able to reconstruct SPECT up to 24 times faster than multi-threaded CPU implementation (5)
-
Full collimator modelling
Advanced resolution recovery achieves excellent image quality for the most difficult radionuclides like l-131; l-123; Y-90; Ho-166 (6)
-
Accurate planar reprojection
Generate accurate planar images from the reconstructed SPECT

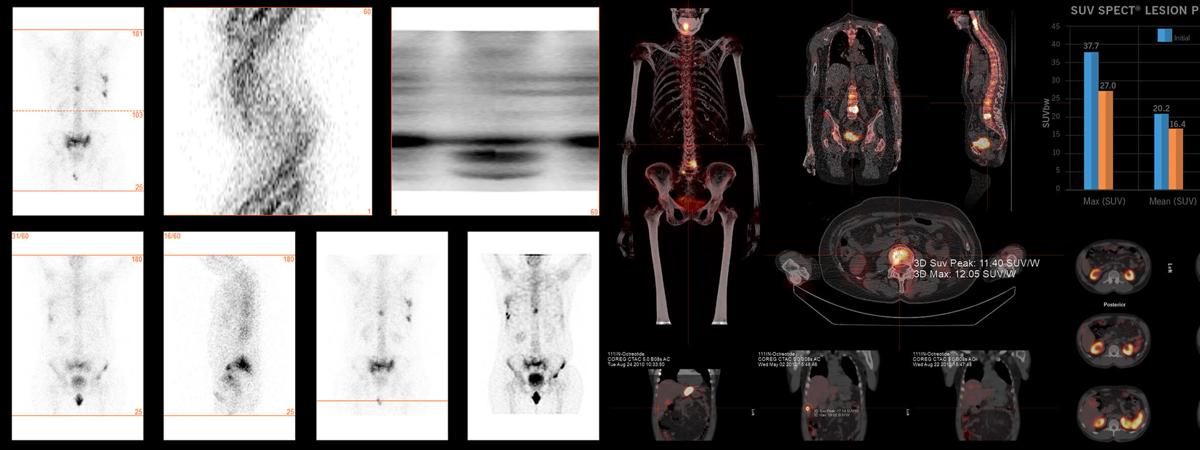

Hermia SPECT Reconstruction
”We have leveraged this technology to reduce our injected activities while maintaining diagnostic image quality - even with older imaging equipment.”
- Ran Klein, PhD, The Ottawa Hospital

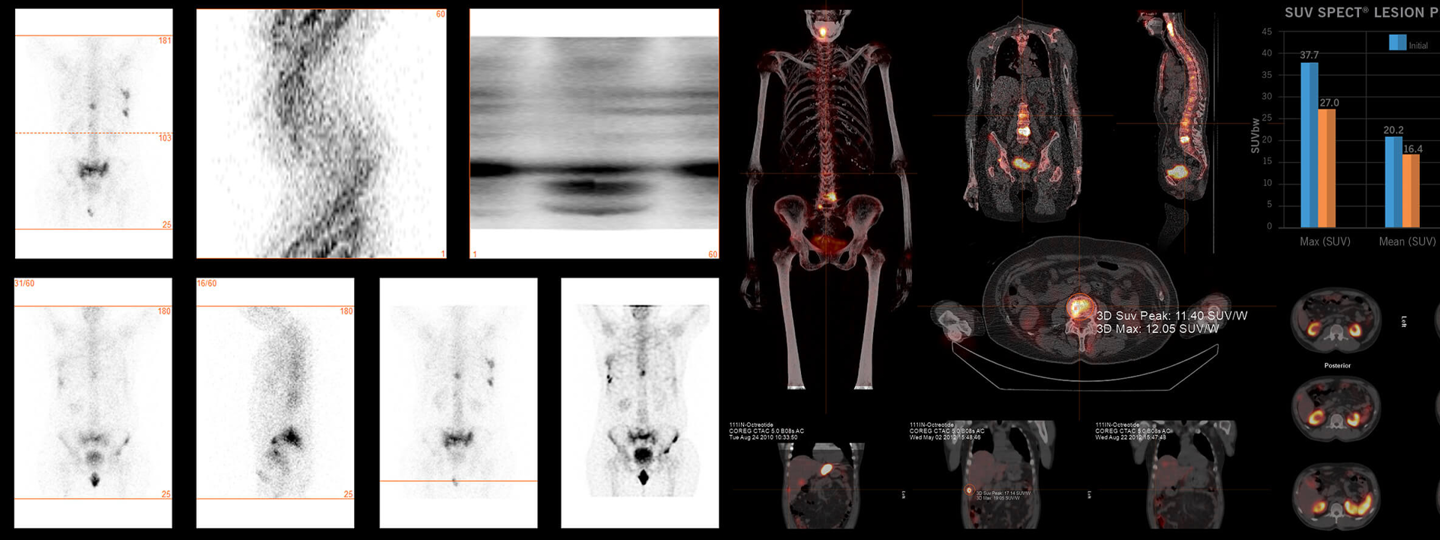

Hermia SUV SPECT®
The advanced reconstruction algorithms from Hermia SUV SPECT® enable conversion of the recorded counts per voxel into activity per unit volume with SUV calculations, providing essential and accurate quantitative results. Numerous clinical and technical validation publications support the accuracy and reliability of the software (1-4).
Hermia's complete reconstruction package include tools for quality control, motion correction, collimator response, attenuation and scatter correction, attenuation map registration, and post-filtering. Ready for SPECT-MR, SPECT-CT, SPECT Reconstruction and SPECT Quantification.
References
- Arvola S, Jambor I, Kuisma A, Kemppainen J, Kajander S, Seppanen M, Noponen T. Comparison of standardized uptake values between 99mTc-HDP SPECT/CT and 18F-NaF PET/CT in bone metastases of breast and prostate cancer. EJNMMI Res. 2019 Jan 24; 9(1): 6
- Kangasmaa TS, Constable C, Hippelainen E, Sohlberg AO. Multicenter evaluation of single-photon emission computed tomography quantification with third-party reconstruction software. Nucl Med Commun. 2016 Sep; 37(9): 983-7
- Hippelainen E, Tenhunen M, Maenpaa H, Sohlberg A. Quantitative accuracy of 177Lu SPECT reconstruction using different compensation methods: phantom and patient studies. EJNMMI Research (2016) 6:16
- Kangasmaa TS, Constable C, Sohlberg AO. Evaluation of quantitative 1231 and 1311 SPECT with Monte Carlo-based down-scatter compensation. Nucl Med Commun. 2018 Dec; 39(12): 1097-1102
- Bexellius, Sohlberg A. Implementation of GPU accelerated SPECT reconstruction with Monte Carlo-based scatter correction. Ann Nuc Med, 32(5): 337-347, 2018
- Porter C, Bradley K, Hippelainen E, Walker M, McGowan D. Phantom and clinical evaluation of the effect of full Monte Carlo collimator modelling in post-SIRT yttrium-90 Bremsstrahlung SPECT imaging. EJNMMI Research (2018) 8:7
You might wonder about
-
- Vendor neutral
- Anatomically guided Bayesian bone recon included in the main package, not individually for each SPECT camera
- Y-90 Bremsstrahlung model–possibility for quantitative Y-90 SPECT post SIRT
- Long track record of consistent quantitative SPECT, many publications on this topic for Tc-99m and Lu-177
- SUV-SPECT recon is compatible with any generation of SPECT-CT
-
No, it isn’t. We dramatically reduce reconstruction time thanks to our advanced algorithm using GPU acceleration.
SUV-SPECT calibration
-
150 Mbq in 6-7L uniform phantom (Jaszczak). This gives about 21 kBq/ml. For a 2L phantom (soda bottle) 50 MBq.
-
Same to Tc99m as the camera will be almost as efficient. 150 Mbq in 6-7L uniform phantom-. This gives about 21 kBq/ml. For a 2 L phantom 50 MBq.
-
250-300 MBq in a 6-7L phantom. 100 MBq in a 2 L phantom. Overall sensitivity of the camera is likely to be about 10-20% compared to Tc-99m.
-
Same as Lu 177 Dotatate. 250-300 MBq in a 6-7L phantom. 100 MBq in a 2 L phantom. Overall sensitivity of the camera is likely to be about 10-20% compared to Tc-99m.
-
Yes, as you might get a more realistic attenuation and scatter with a uniform phantom compared to a point source.
-
No, if you mean additional attenuating material like water bags etc.
-
Any uniform cylinder can be used. A Soda bottle provides a good liquid-tight that will not be missed as it decays to safe levels. Suggest 1.5 - 2L size to allow a cylindrical VOI to be drawn inside. Do not use plastic milk bottles or other types that are not well sealed. Soda bottles are designed to handle high pressure, so they are safer and more water-tight. General comment on which radiopharmaceuticals to use—avoid "sticky" ligands that will be harder to mix and might stick to the sides of the phantom. For Tc-99m use HDP/MDP or DTPA. Do not use MIBI, MAA or colloidal radiopharmaceuticals. For the radioiodine isotopes, go for simple NaI if possible.
